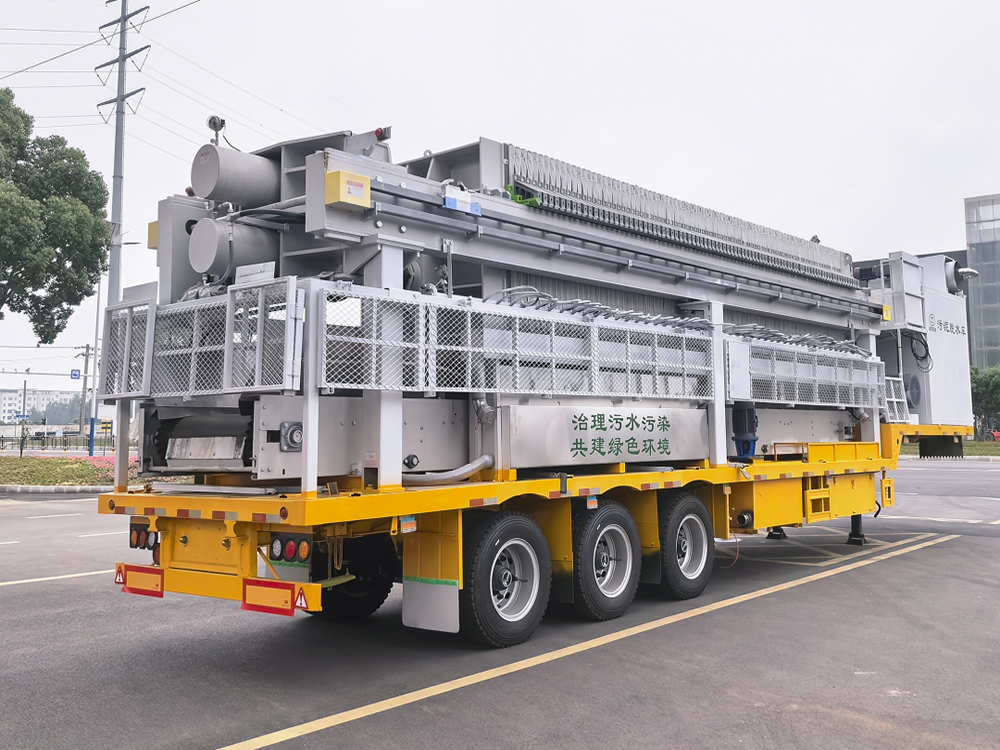

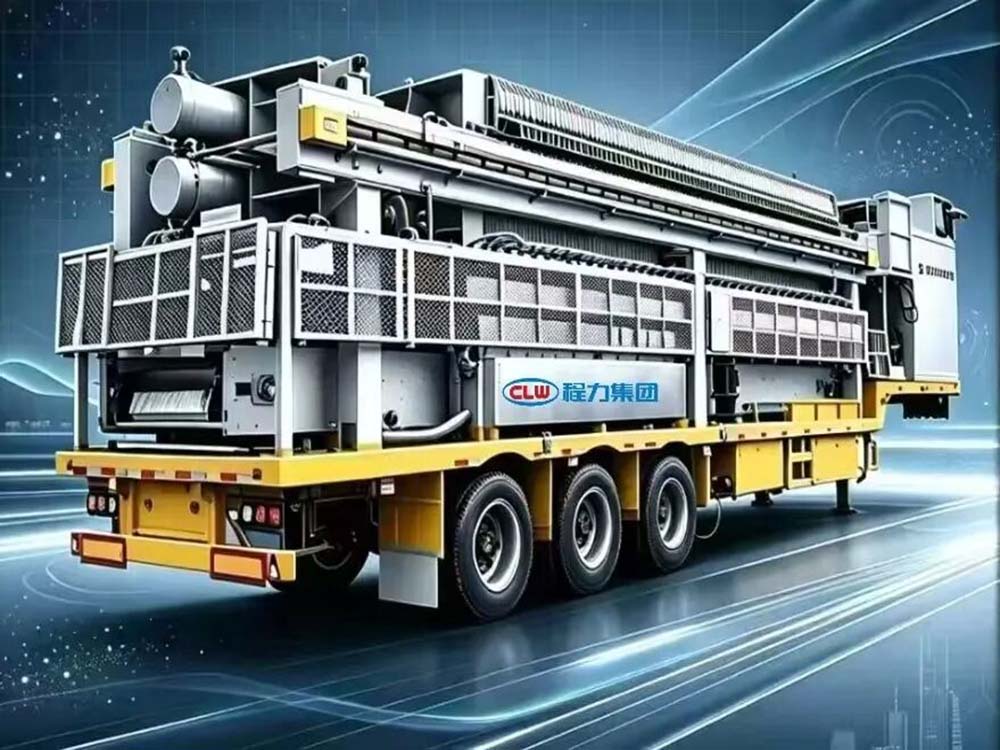

Chengli Dali semi-trailer mobile sludge dewatering truck highly integrates the entire system of large square diaphragm plate frame pressure filtration onto a three-axis semi-trailer, bidding farewell to the traditional fixed factory mode and relying on a tractor to achieve rapid cross site transfer operations.
The equipment integrates a hydraulic pressing system, an automatic pulling plate mechanism, and a belt automatic unloading mechanism. The slurry is directly fed to complete solid-liquid separation and produce low moisture sludge cake, achieving on-site sludge reduction and significantly reducing the volume and transportation cost of sludge transportation. The whole machine is equipped with safety protection fences, surveillance cameras, electronic control, and emergency manual dual operation modes, ensuring safe and reliable operation.
Widely adaptable to various working conditions such as municipal river dredging, pipeline sludge disposal, infrastructure shield tunneling mud, sand washing tailings, industrial sludge, etc., it can be rushed to various emergency environmental protection project sites to start construction as soon as it enters the site, efficiently assisting in sewage and sludge treatment, and jointly building a green ecological environment.
Main technical parameter configuration
1. Chassis carrier: Three axle semi-trailer flatbed trailer, yellow dedicated semi-trailer chassis, three axle airbag/steel plate suspension, multiple sets of safety nets, warning signs, and leg devices Core host: Large square diaphragm frame filter press unit, equipped with high-pressure diaphragm pressing system, hydraulic cylinder components, and automatic plate pulling mechanism 3 Supporting System: Automatic Unloading Belt Conveyor Mechanism, Whole Machine Safety Protection Fence, Electric Control Operating System, Emergency Manual Operating Mechanism, Feed Pipeline System, Whole Machine Monitoring Camera 4 Homework format: Vehicle integrated integration, no need for building a factory building, trailer towing transfer, on-site completion of sludge solid-liquid separation, automatic discharge and output of sludge cake.
Core Strength and Highlights
1. Mobile operation, flexible transition: The semi-trailer vehicle integrates a complete set of pressure filtration equipment, and the tractor can quickly transition without building a fixed factory, suitable for multi-point mobile operation. 2. On site reduction and dewatering of sludge: The sludge is directly fed and pressed through a diaphragm to produce a dry sludge cake with low moisture content. The sewage is filtered and separated, and the sludge does not fall to the ground, reducing the volume and transportation cost of sludge transportation. 3. Fully automatic operation: automatic plate pulling, automatic unloading belt outputting mud cake, equipped with safety interlock protection, fault alarm, emergency manual mode, ensuring that equipment can unload under fault conditions. 4. High integration: The filter press host, hydraulic system, conveying and discharging, and electronic control are all integrated into the semi-trailer, and can be started by connecting the power and pipeline on site, shortening the project entry cycle.
Global homework scenario
1. Municipal environmental protection: sludge disposal in municipal sewage treatment plants, dredging of urban pipelines, and dewatering of silt in rivers and lakes. 2. Engineering infrastructure: solidification treatment of shield tunnel slurry, pile foundation slurry, and jacking engineering slurry. 3. Industrial sector: Dehydration of industrial sludge from chemical plants, printing and dyeing, electroplating, sand washing tailings, oilfield oil sludge, etc. 4. Emergency rescue: Emergency sludge disposal during flood season, and emergency treatment projects for sudden sewage sludge. 5. Flow environmental protection engineering projects such as aquaculture, mining tailings slurry solid-liquid separation and disposal.
Recommended sewage and sludge treatment vehicles for the entire series

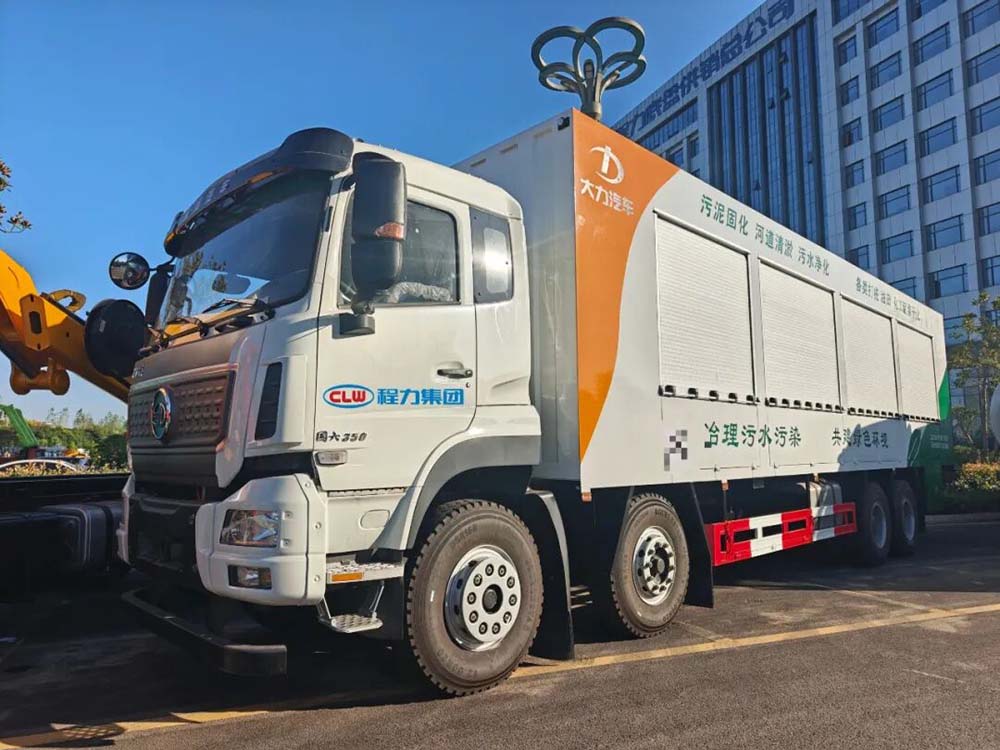

1. Heavy truck sewage sludge treatment vehicle

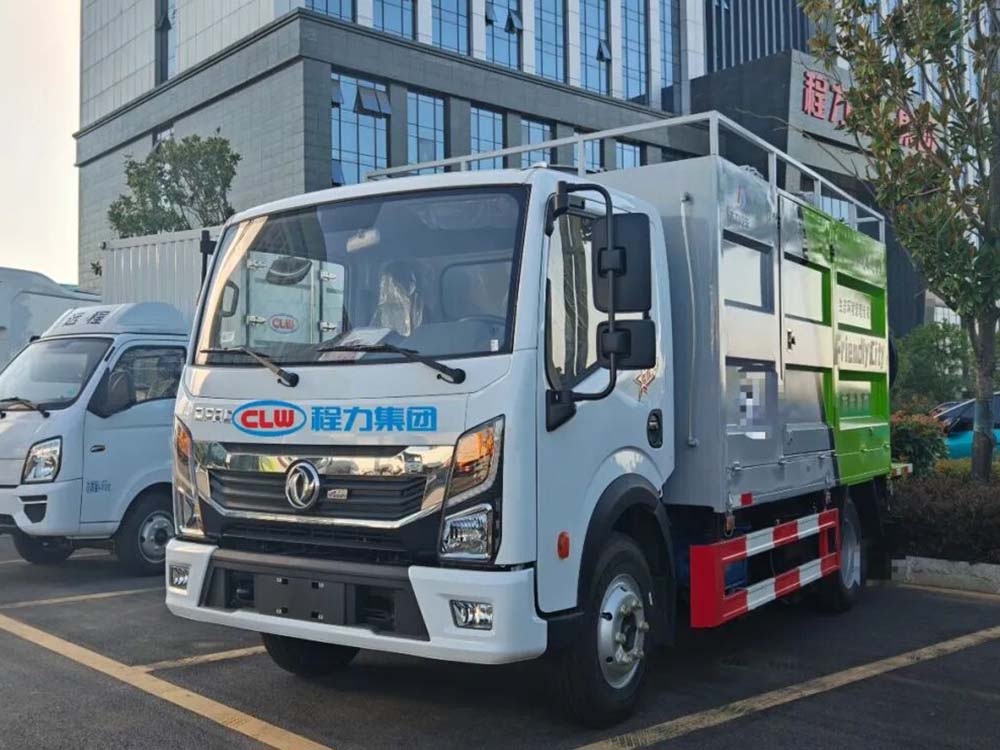

2. Light truck yellow card sewage sludge treatment vehicle

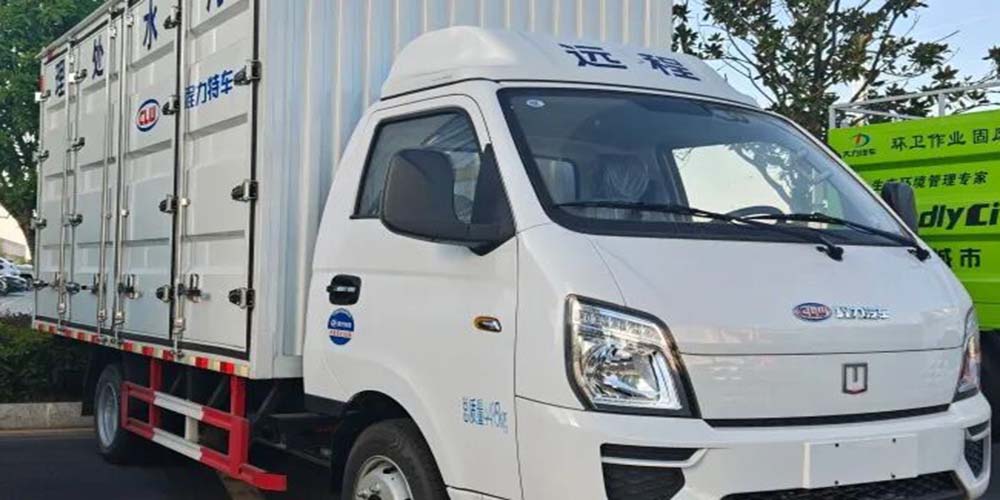

3. Micro Card New Energy Pure Electric Sewage Treatment Vehicle
