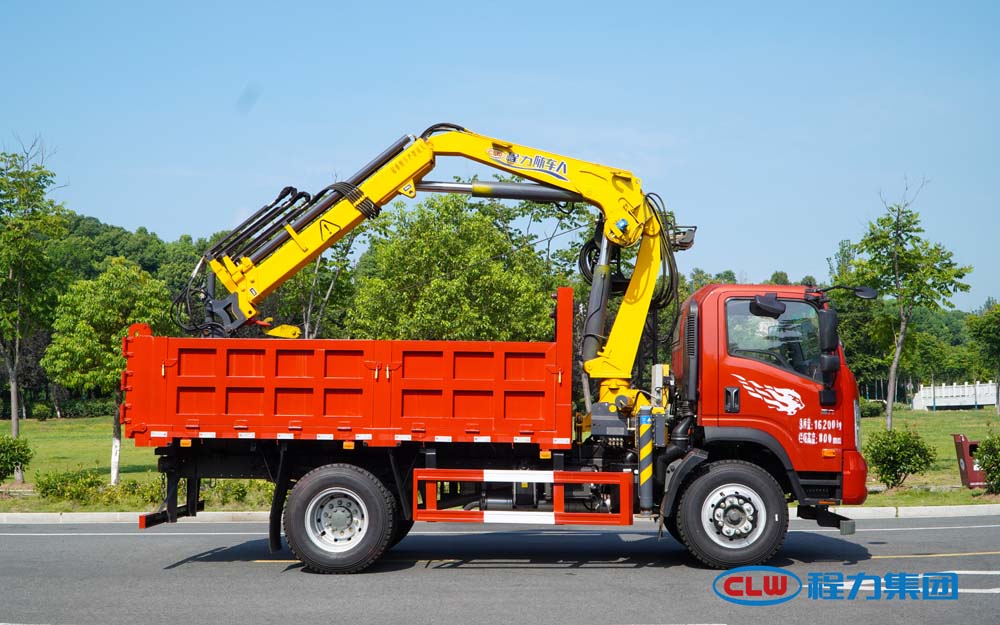

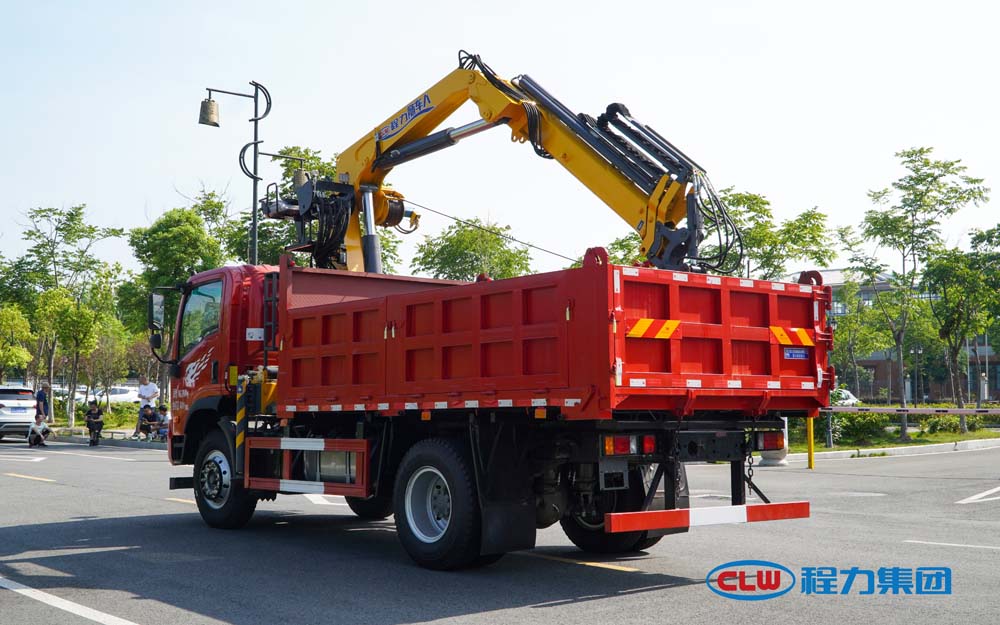

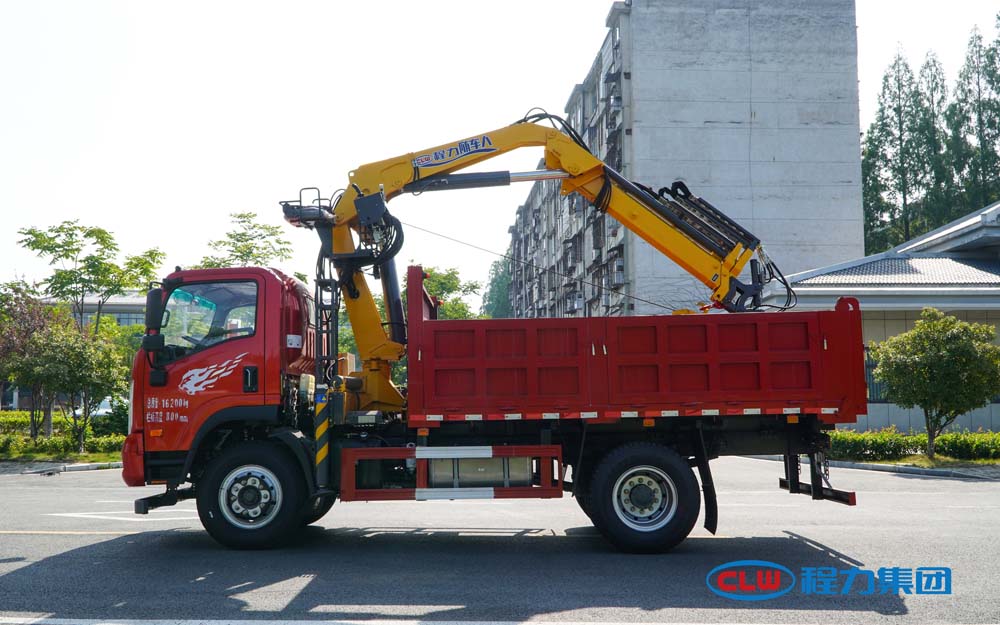

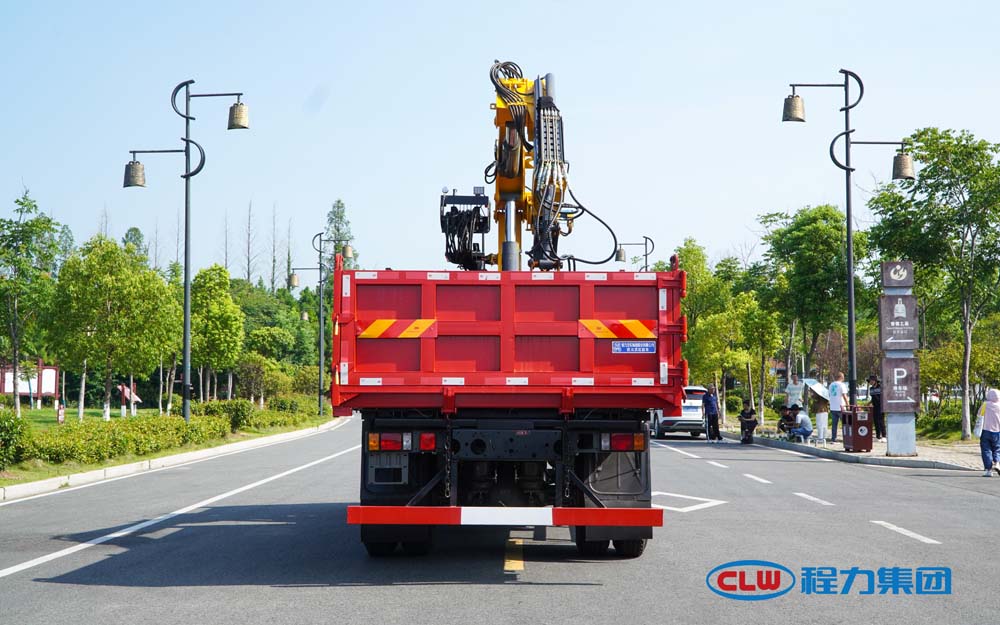

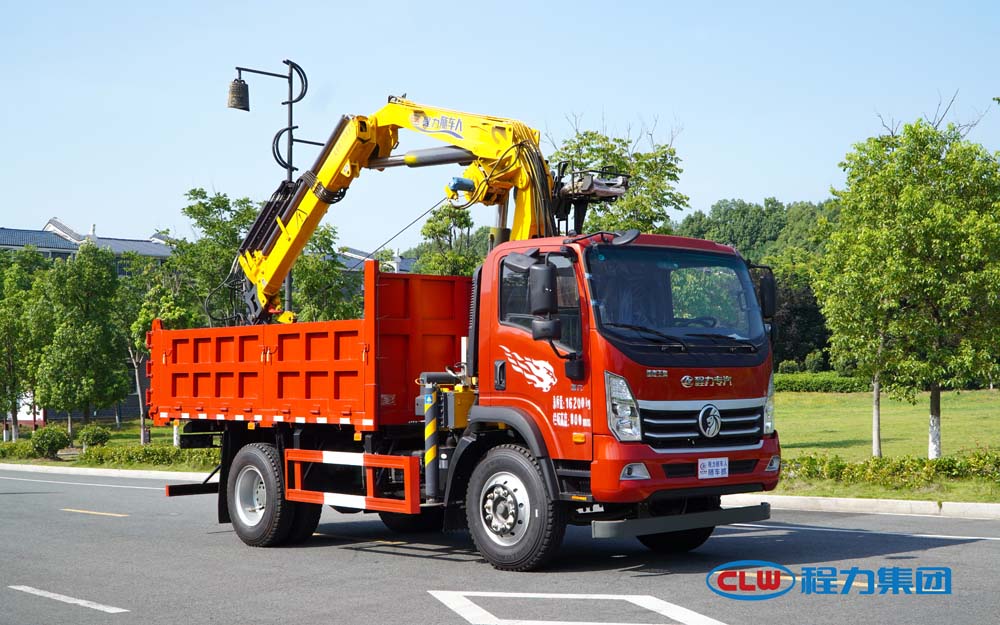

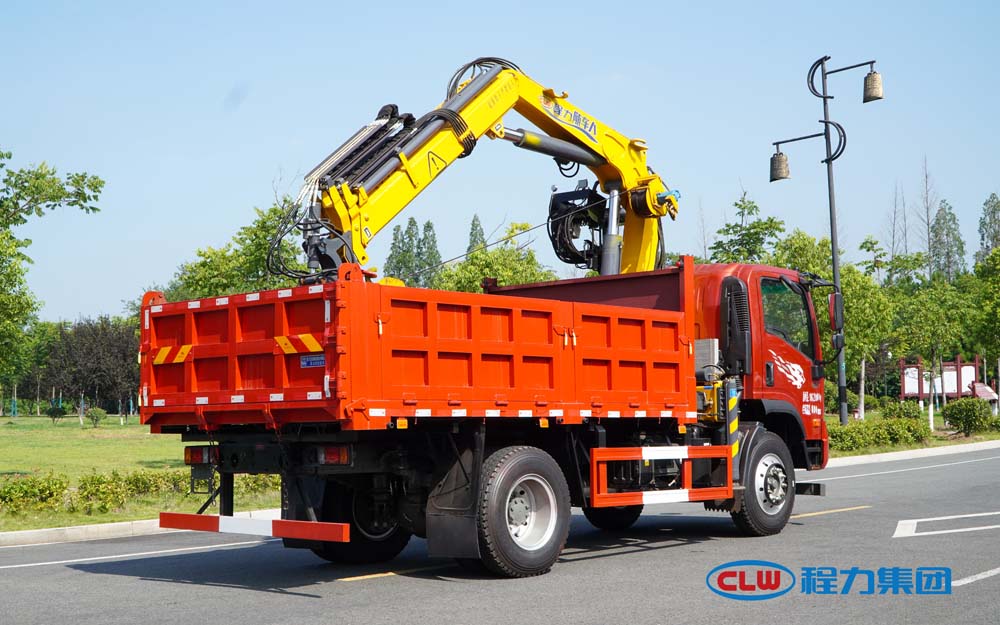

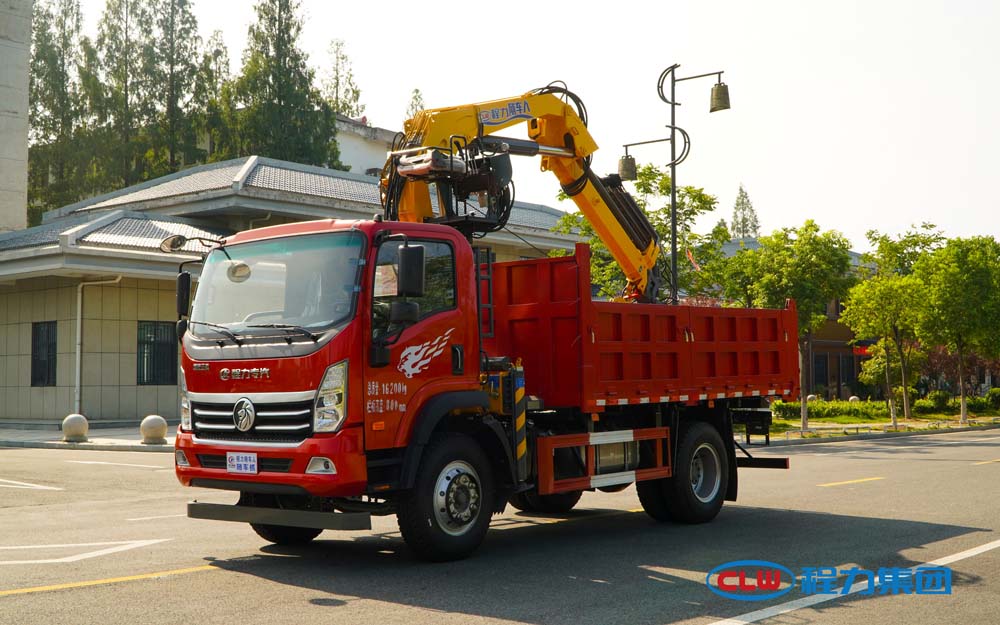

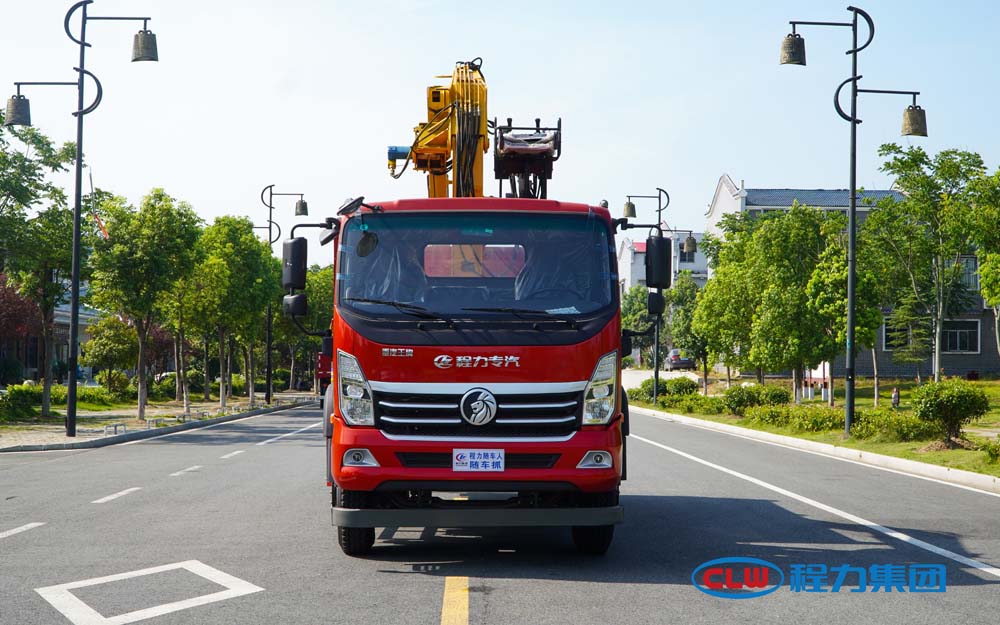

The weight of the gripper is 2700kg, with a maximum lifting load of 2300kg. It has a three section telescopic boom structure, a full extension operating radius of 8m, a maximum lifting height of 10m, 360 ° hydraulic rotation without dead angles, 3+2 hard connected alloy steel gripper claws, and an adjustable claw mouth range of 1400-1600mm. The hydraulic handle in the cab is centrally controlled, and the entire process of single person vehicle operation is carried out without manual labor or loader assistance for loading.

Autonomous grabbing of large blocks of materials: construction waste stones, large waste furniture, tree branches and trunks, scrap steel and iron, bamboo wood, large household waste, with strong claws for easy grabbing and loading of irregular large blocks of materials, solving the problem that ordinary garbage trucks cannot manually load.

Scattered and scattered materials are collected and loaded: fallen leaves, debris, bagged garbage, and garden trimming waste are collected and loaded into the container using a grab bucket. The loading efficiency is more than 5 times that of manual loading.

360 ° rotation span operation: The vehicle body does not need to move frequently, and can rotate left and right, front and back to grab materials from roadside ditches, green belts, and inside fences. It can flexibly operate in narrow alleys and dead corners of residential areas.

Grab bucket lifting head fine adjustment function: The claw head can be slightly lifted to shake off attached soil and debris, reducing residual hanging materials in the compartment.
