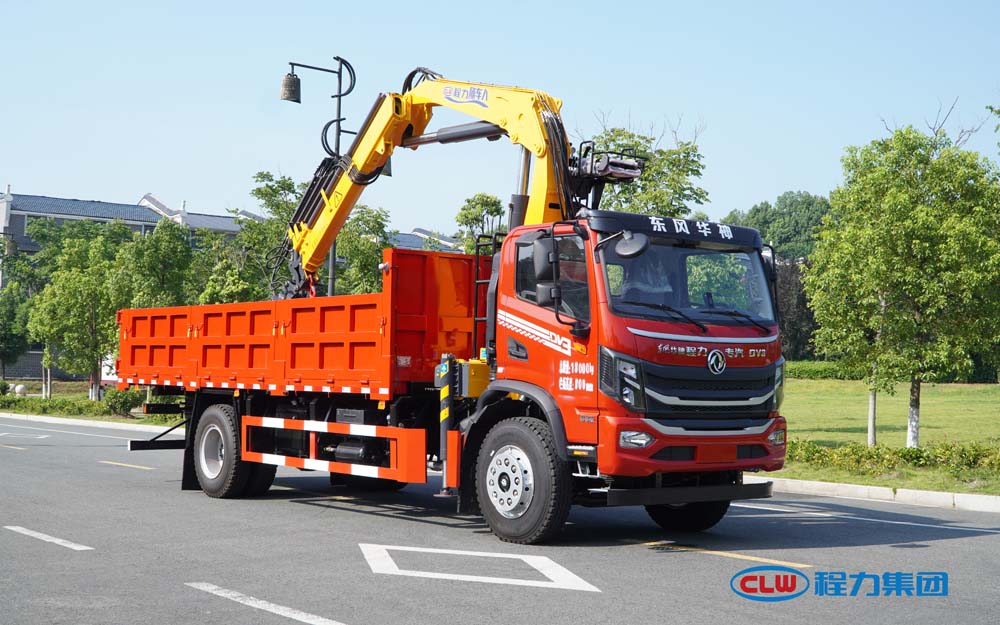

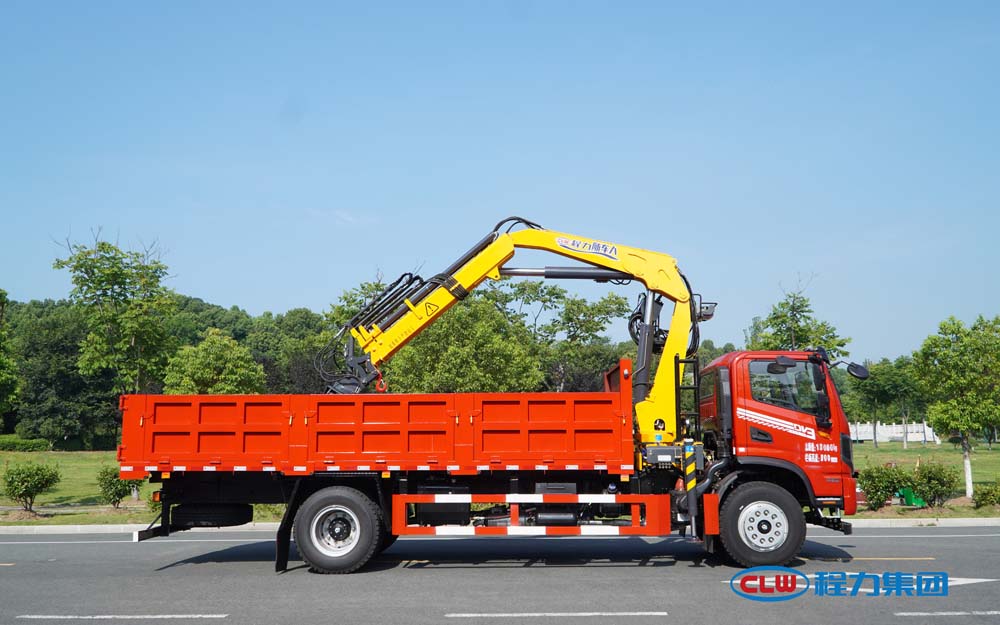

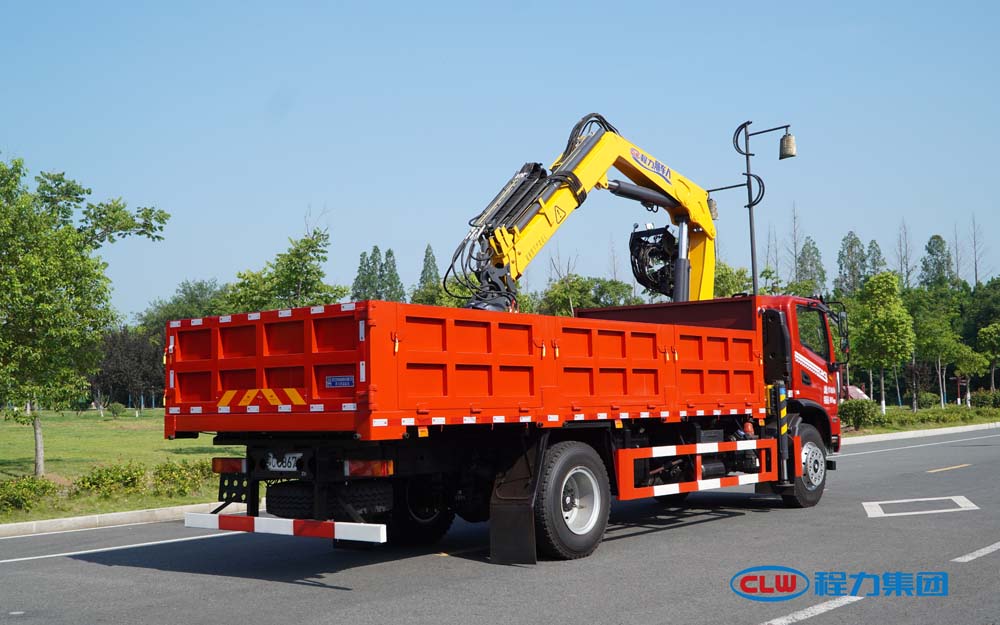

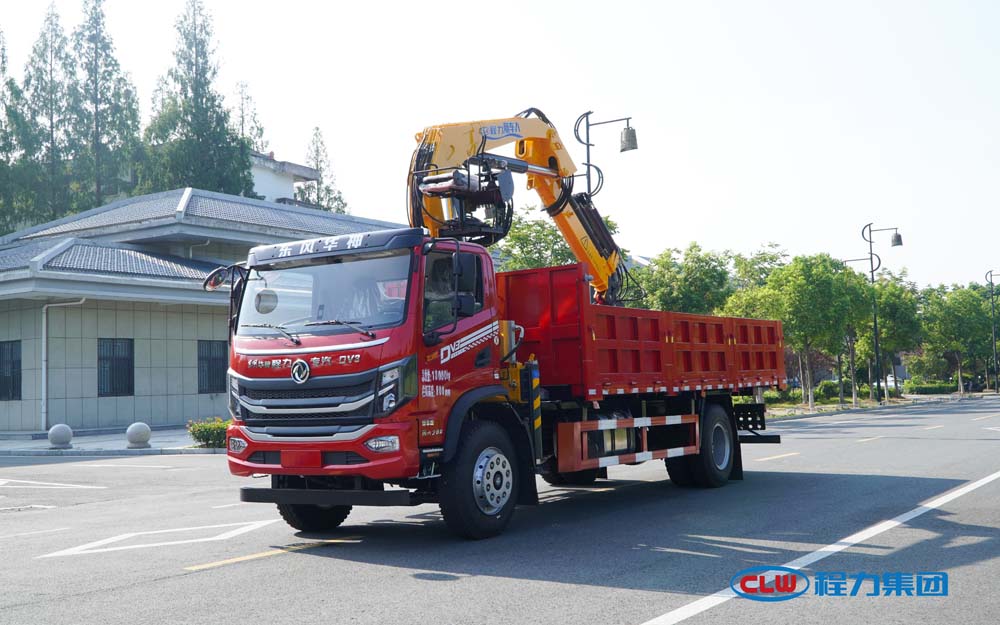

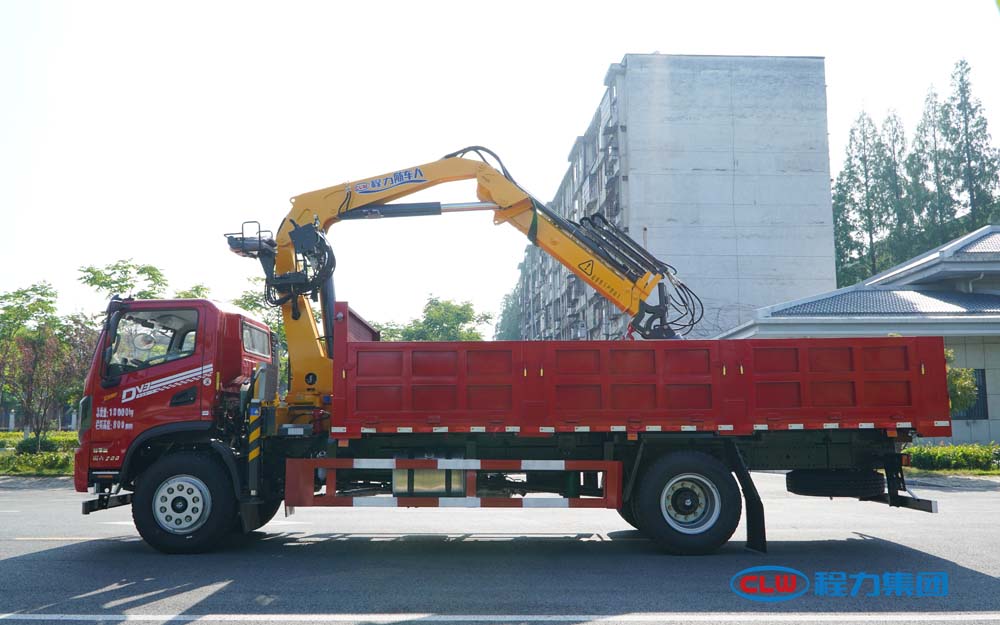

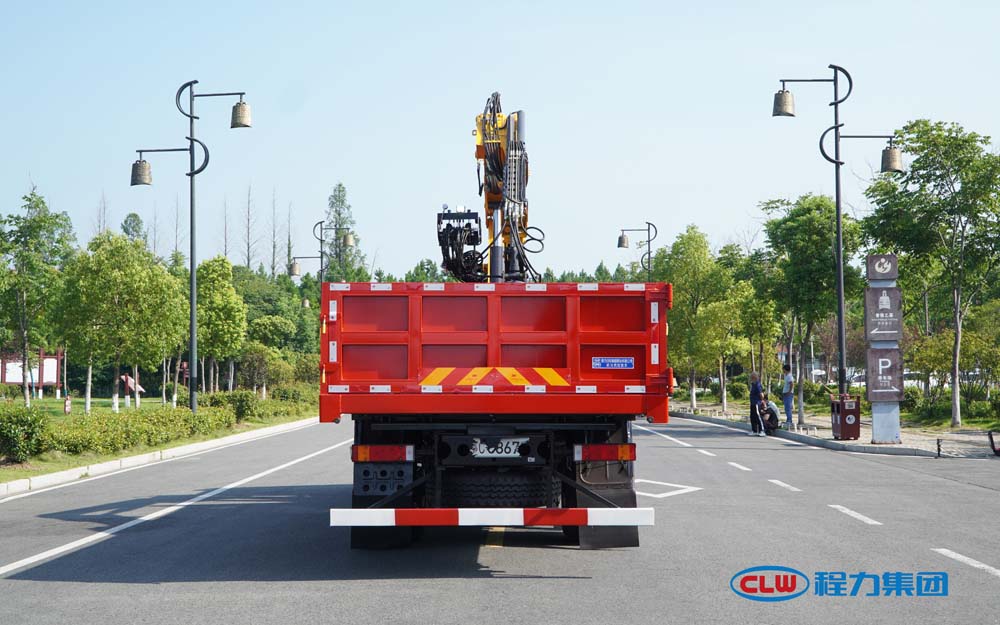

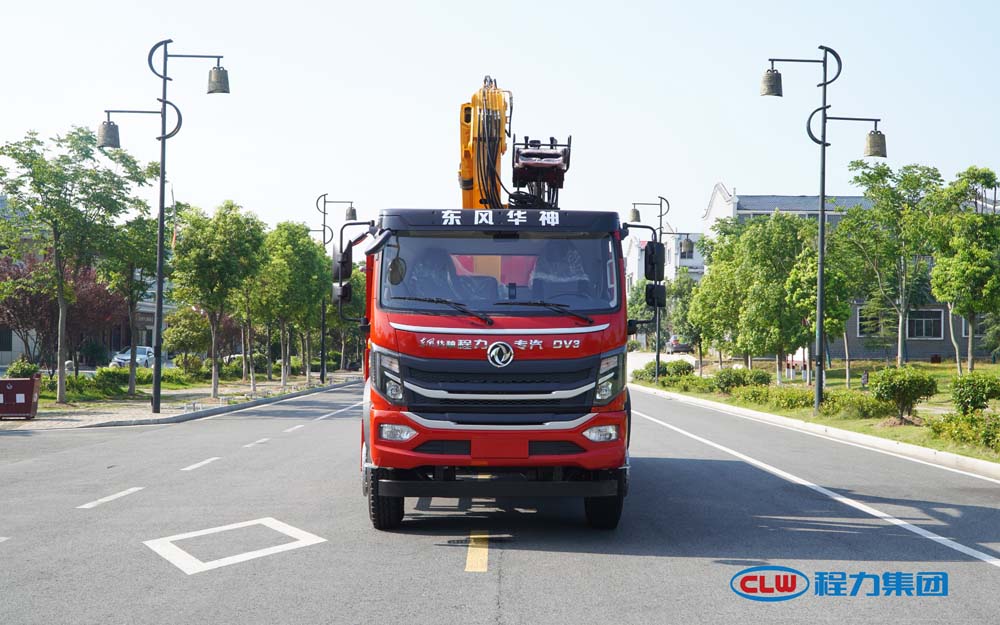

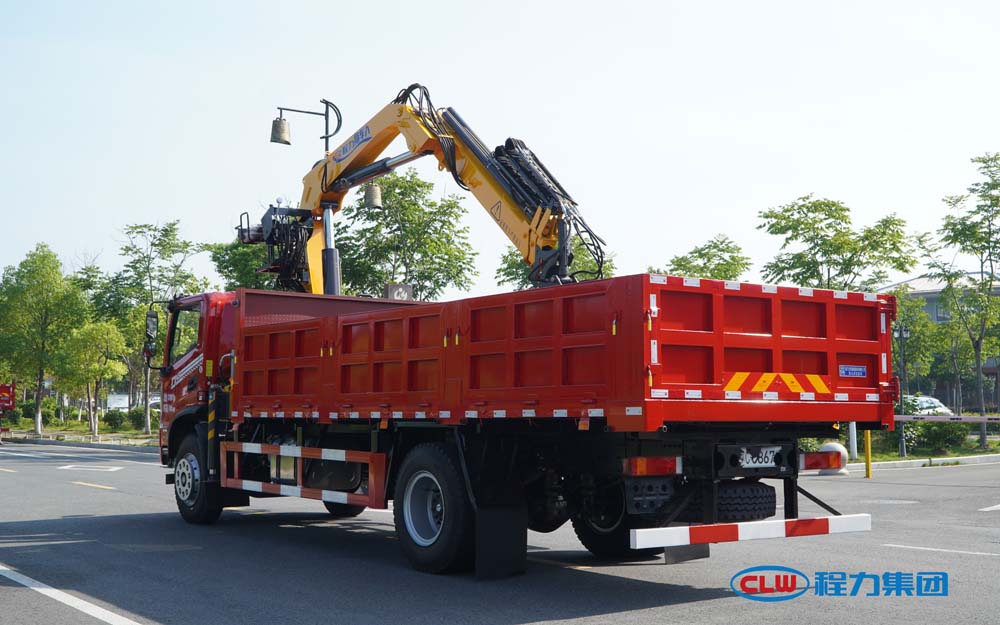

The weight of the gripper is 3170kg, with a maximum rated lifting load of 3500kg. It has three folding telescopic arms, a maximum operating radius of 8.2m, a maximum lifting height of 10.5m, and a 360 ° fully hydraulic no dead angle rotation. It comes standard with 3+2 alloy steel universal gripper, with a gripper opening and closing range of 1450-1650mm. The gripper head has an independent hydraulic lifting structure, and is equipped with a dual control mode of upper console and cab.

Autonomous grabbing and loading of large blocks of materials: Large waste furniture, stones, construction waste, raw wood branches, scrap steel, scrap iron, bamboo and other irregular large blocks of materials do not require loaders or manual loading. The grabbing claws are strongly engaged and can be grabbed and loaded into the box on site, with loading efficiency more than six times that of manual labor.

Scattered waste collection: soil, fallen leaves, bagged household waste, and trimmed green debris are collected and loaded onto trucks using grab buckets. There is no need to frequently move vehicles along narrow alleys and green belts in the community.

Self cleaning and anti sticking material with upturned claws: The claw head of the grab bucket can shake up and down slightly, shaking off soil and sticky debris, reducing the residue of hanging materials in the compartment.

Long distance operation: The vehicle remains stationary, and the crane arm rotates left and right to grab the ditch, the inner side of the fence, and the deep buried garbage on the roadbed slope, solving the problem of clearing corners and dead corners.
