Effective volume of the box: 16m ³
Box material: Q345 high-strength wear-resistant manganese steel, with thickened side and bottom plates for wear and corrosion resistance
Compression mechanism: Rear packing device+push plate bi-directional compression, compression ratio ≥ 2.5:1
Installation power: Independent hydraulic drive motor, the two sets of power for driving and operation are independent of each other, and the operation does not consume the power of the driving battery
Homework cycle: single packing compression cycle of 25-35 seconds; Unloading time 45~60 seconds

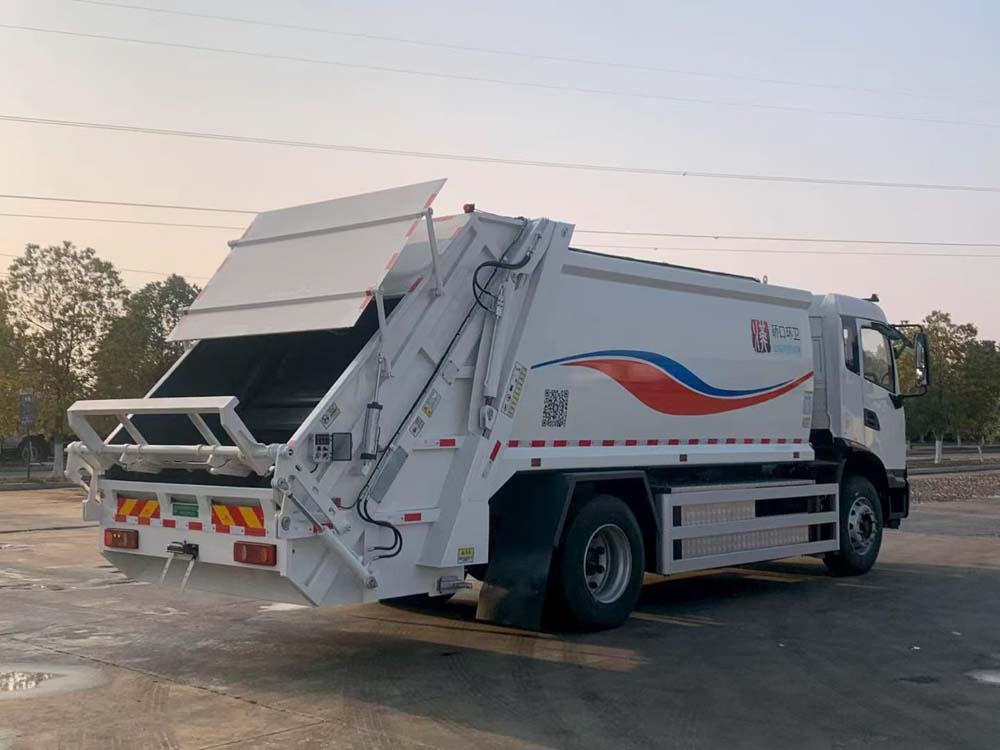

Bucket flipping mechanism: standard 240L plastic trash can with automatic lifting and dumping function, can also support 660L large bucket optional
Sewage collection: A large capacity sewage tank is integrated at the bottom and tail of the box to collect leachate from garbage, with a discharge valve
Hydraulic system: imported seals, heavy-duty hydraulic cylinders, multi way electromagnetic directional valves
Operation mode: cab panel operation+local manual control at the rear+wireless remote control, three control modes
