Fire and explosion protection, pre layout of exhaust pipes to prevent high-temperature exhaust from igniting medical waste and liquid waste; Equipped with a fireproof cover and an electrostatic grounding towing device to release static electricity and eliminate fire hazards; The cab is equipped with a dry powder fire extinguisher as standard. Front wheel disc brake, rear wheel drum brake, ABS anti lock braking system for the entire vehicle, standard tire blowout emergency protection device, ensuring no loss of control during high-speed driving. The vehicle has a speed limit of 80km/h and is equipped with a national standard driving recorder. The vehicle's driving route, speed, and dwell time are fully stored and traceable, meeting the requirements of environmental protection and health supervision.
Stable power and load capacity, equipped with a 122 horsepower National VI diesel engine, 7.00R16 steel wire tires, a rated load capacity of 1105kg, and an effective volume of 12.8m ³ in the cabin. It can be loaded in bulk with standard yellow medical waste turnover boxes and has a large single collection capacity.
Vehicle protection structure, steel side protection, rear collision protection, to prevent scratching, impact damage, and leakage of waste liquid from the cabin body; The cockpit and cargo compartment are completely isolated to prevent bacteria and odors from entering the cockpit.

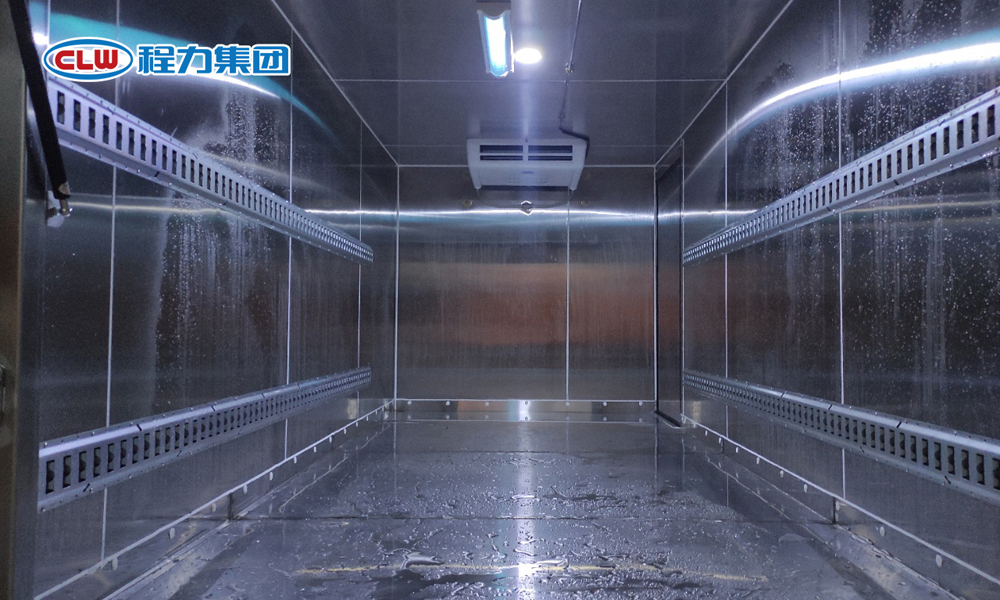

Three layer thermal insulation and anti-corrosion chamber structure, 2.5mm glass fiber reinforced plastic (impact resistance and aging resistance) for the outer layer, 60/80mm Class A flame-retardant polyurethane insulation layer (temperature locking and heat insulation) for the middle layer, 304 food grade stainless steel (corrosion resistance to acid, alkali and disinfectant) for the inner layer, and aluminum alloy full wrapped edge sealing without gaps.

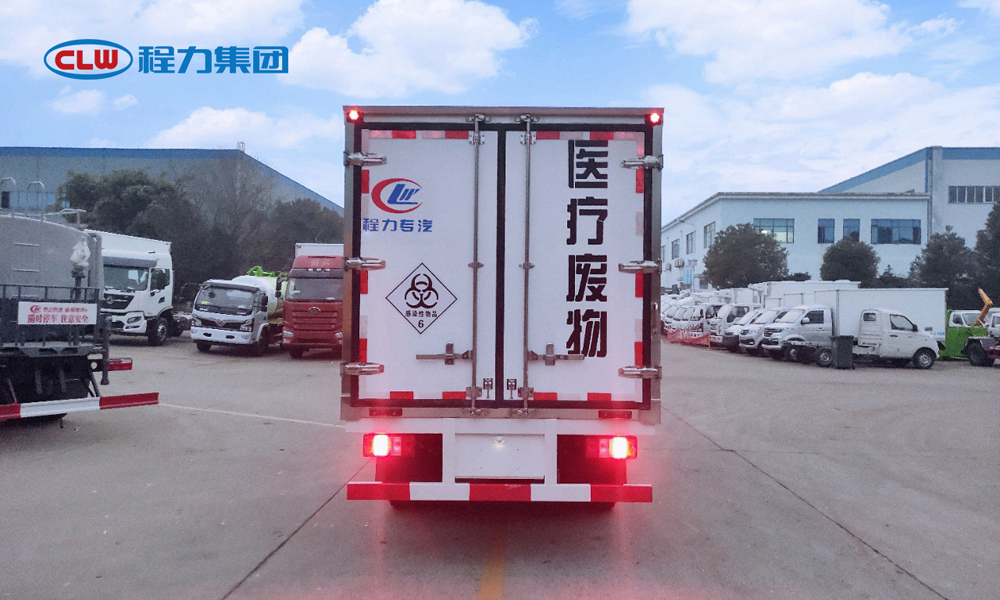

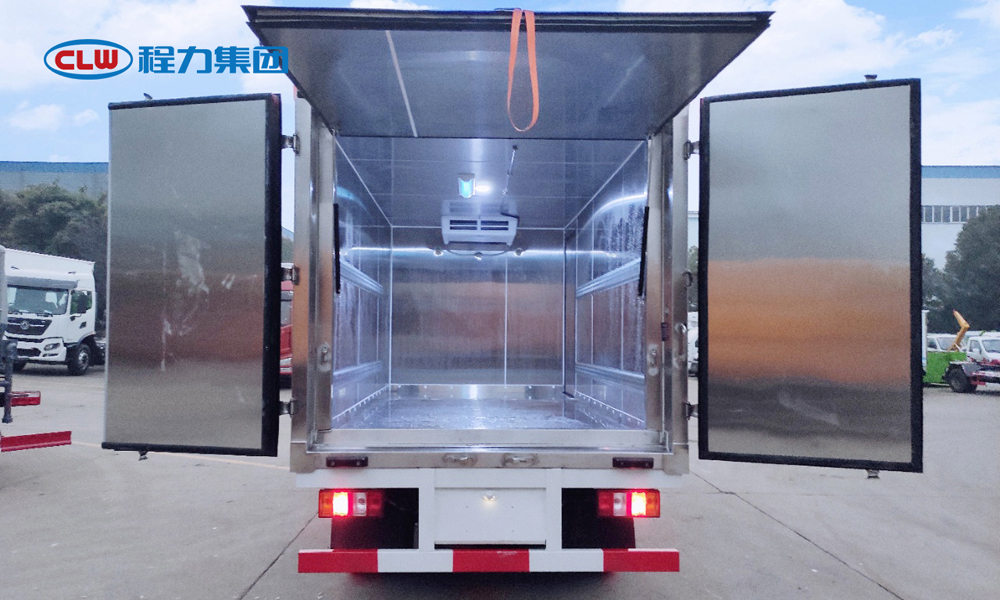

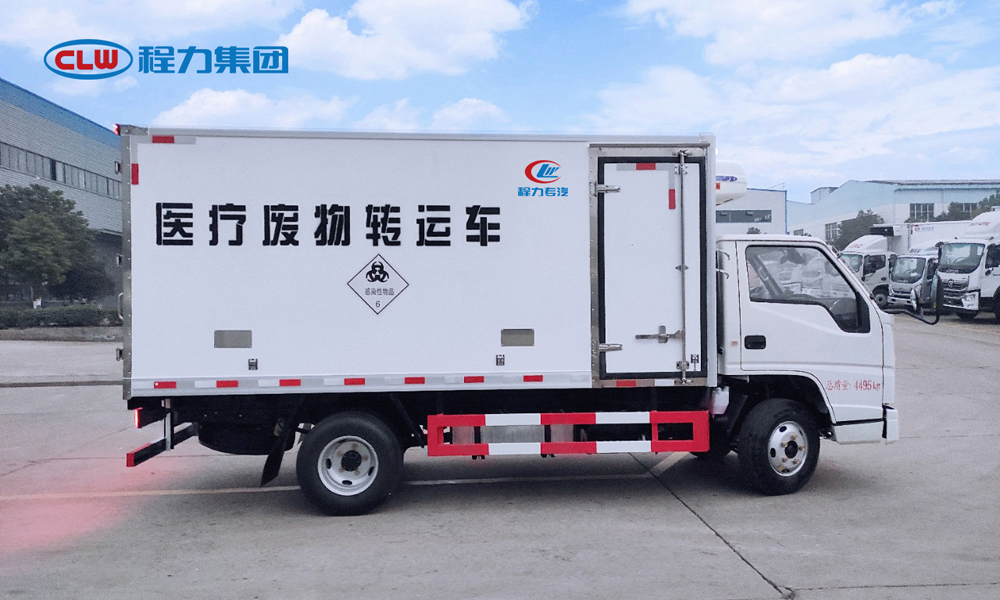

Double layered labyrinth sealed rear door, with double opening doors and two sealing strips on the inside and outside, featuring a labyrinth waterproof and dustproof structure, ensuring that waste liquid and blood will not leak under bumpy or tilted conditions; A complete set of stainless steel door locks and hinges, rust resistant and durable. Integrated diversion and anti leakage bottom plate, with all corners of the cabin bottom and side walls formed as a single arc, without any hygiene blind spots; The bottom plate is designed with a slight tilt, and the waste liquid automatically flows to the stainless steel waste liquid collection tank at the bottom to receive leaked body fluids. After transportation, it is centrally processed to prevent road pollution. One side loading and unloading door is optional, and the front of the cabin can be equipped with a side opening door. For narrow spaces in residential areas and small clinics, one side loading and unloading can be done without reversing, improving the efficiency of collection and transportation.
