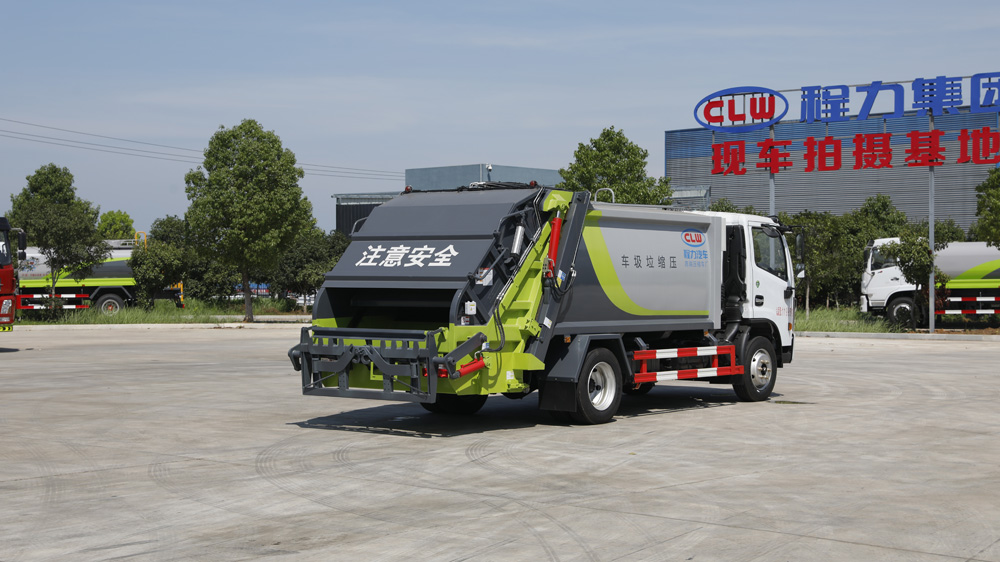

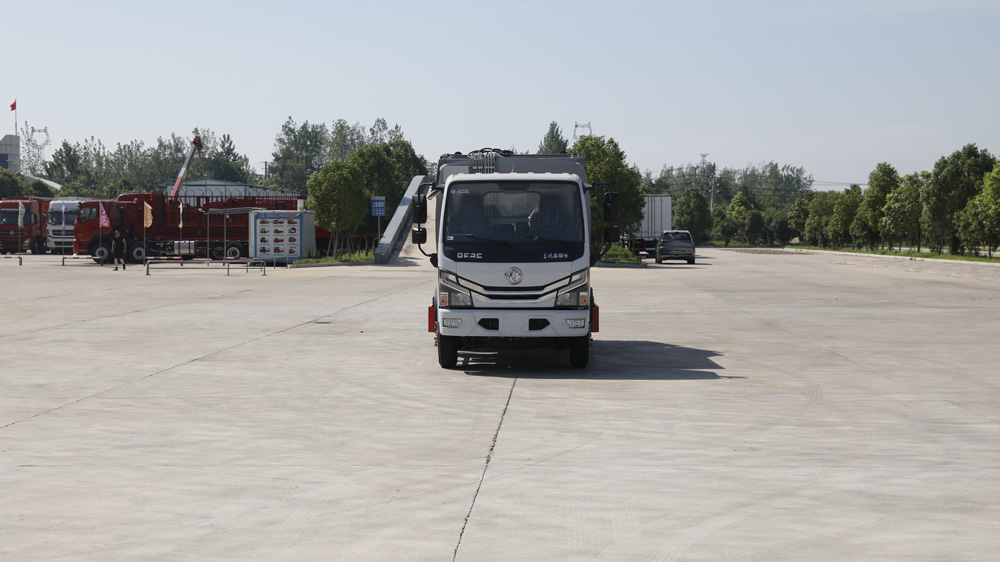

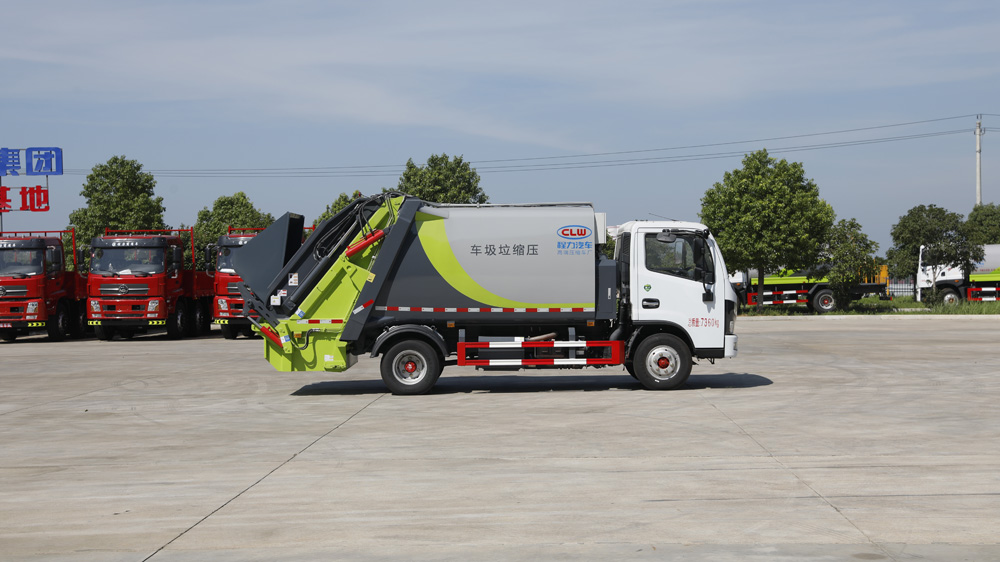

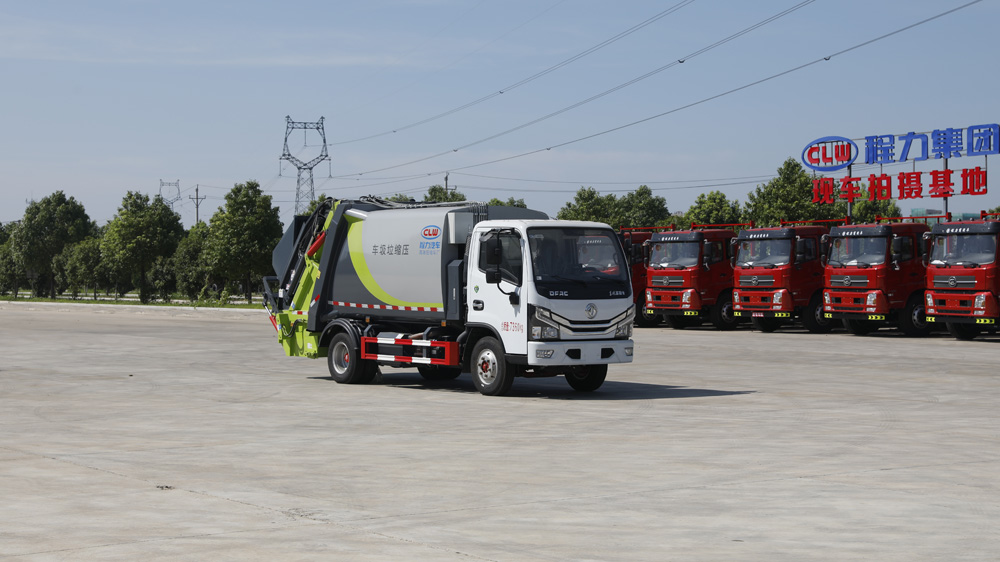

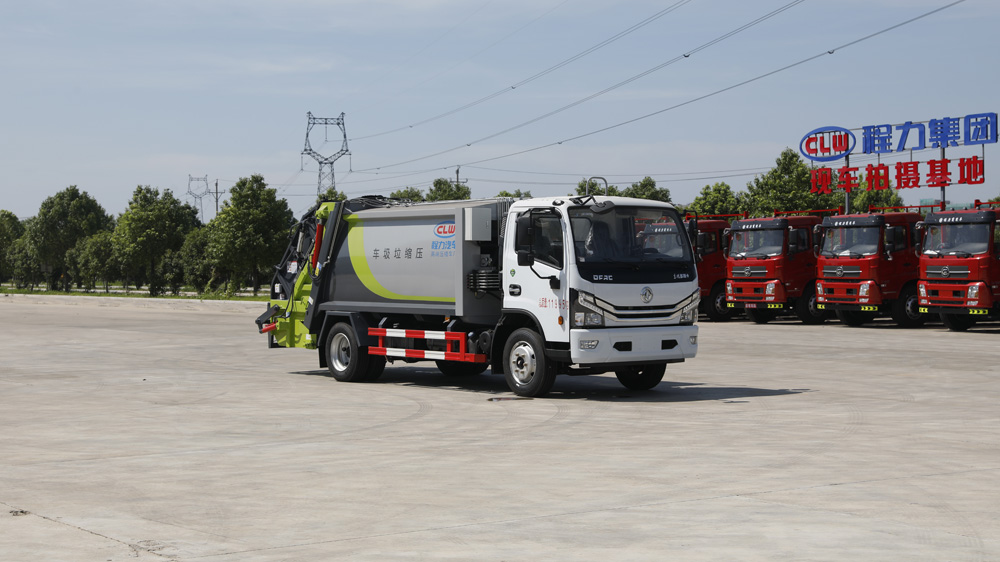

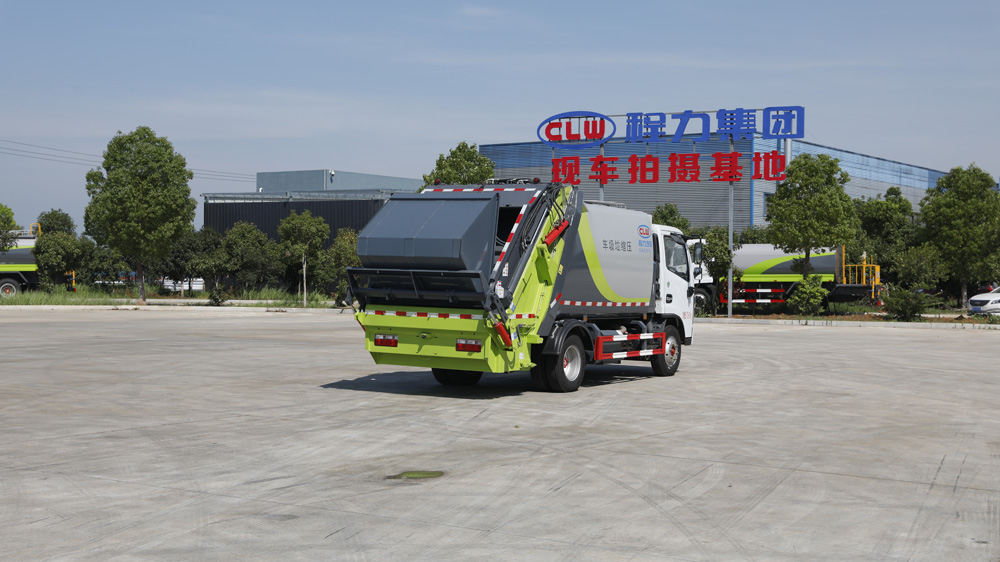

Suitable for various types of household waste collection needs such as bagged, barreled, and bulk, supporting multiple optional work devices. Can be equipped with bucket flipping devices, semi sealed bucket devices, swing arm devices, etc. according to actual work scenarios. Compatible with commonly used specifications such as 120 liters and 240 liters of garbage bins, it can load 175 barrels of 240L plastic bin garbage at once, with strong versatility. By using a hydraulic driven lifting and flipping mechanism, the garbage bin can be quickly grasped, lifted, and dumped without excessive manual intervention, greatly reducing the labor intensity of sanitation personnel. The body dimensions are flexible, with various lengths ranging from 7150-7720mm, widths ranging from 2200-2400mm, and heights ranging from 2600-3000mm. The wheelbase is 3800mm, making it easy to turn and navigate narrow streets, residential areas, and other areas. It is suitable for diverse grassroots environmental sanitation work scenarios. Equipped with a high-performance hydraulic system, the core components are selected from well-known domestic brands, including Zhejiang Jiashan power take-off, Hefei Wanye gear pump, Weisenbole multi way valve, Liancheng hydraulic cylinder, etc. All cylinders have undergone quenching and tempering treatment with buffering, and the cylinder shaft pin has undergone quenching treatment to improve hardness and bending strength, avoiding operation interruption and damage. The hydraulic circuit operates stably and reliably. The compression method using the coordinated action of scraper and skateboard can efficiently compress garbage, effectively reduce garbage volume, increase single transfer volume, reduce transportation frequency, and lower operating costs. The carriage is made of T700 high-strength wear-resistant steel plate, with 4 sides and 5 bottoms of the box body, 5mm side plates of the filler, 8mm bottom plate, and 8mm thick sliding plate and slide rail. The structure is sturdy, corrosion-resistant, and can withstand long-term high-pressure compression operations without deformation, suitable for long-term high-intensity environmental sanitation operations. Adopting a fully sealed carriage design, the carriage is equipped with a tight sealing structure between the carriage and the filling device, effectively preventing garbage scattering, odor diffusion, and leachate leakage, completely solving the problem of secondary pollution during garbage transportation, and meeting the requirements of modern environmental protection operations. The vehicle is equipped with a dedicated sewage collection device, which can collect the leachate generated during the compression and dumping of garbage, and discharge it synchronously during unloading to avoid sewage pollution of the road surface and surrounding environment, and to protect the environmental hygiene of the work area.
