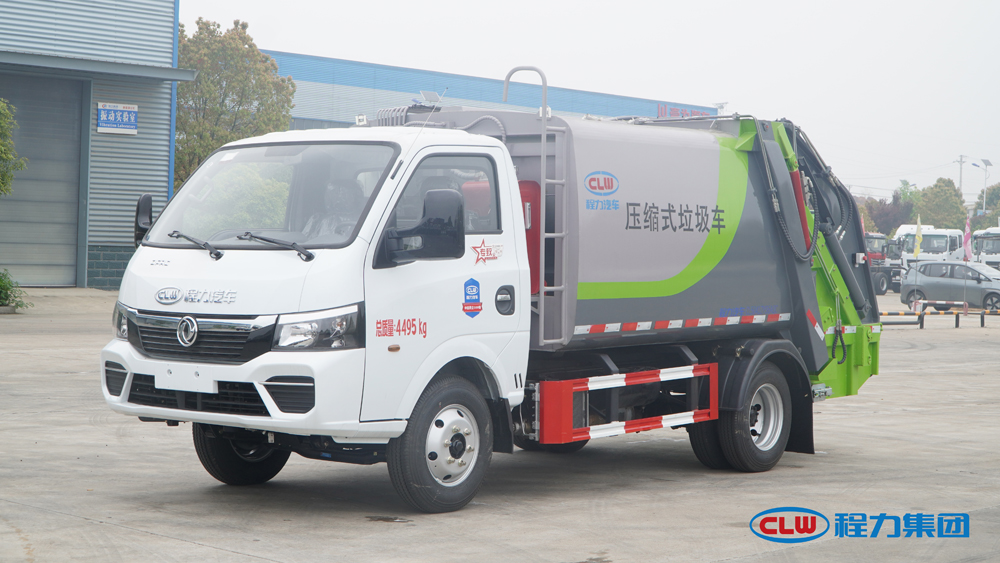

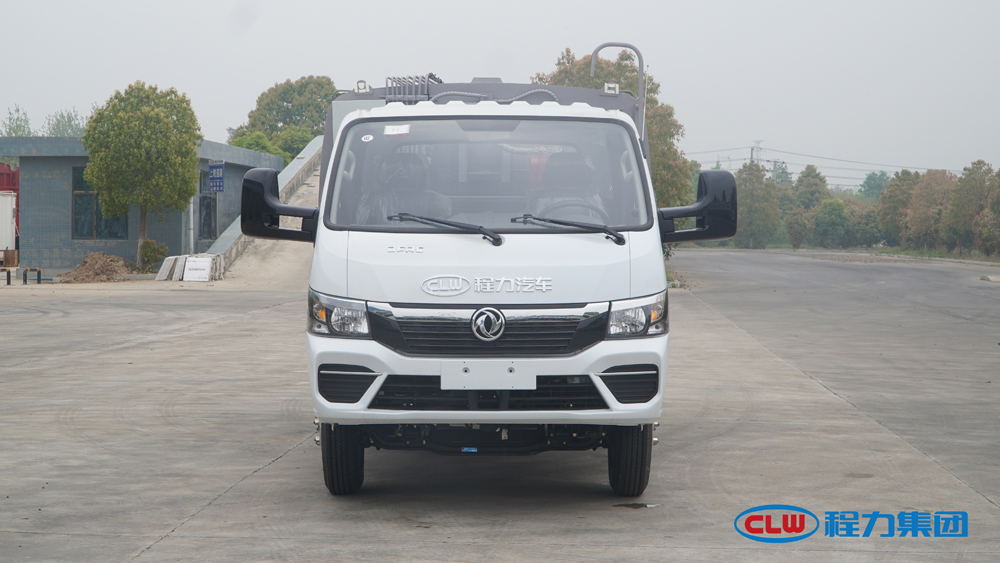

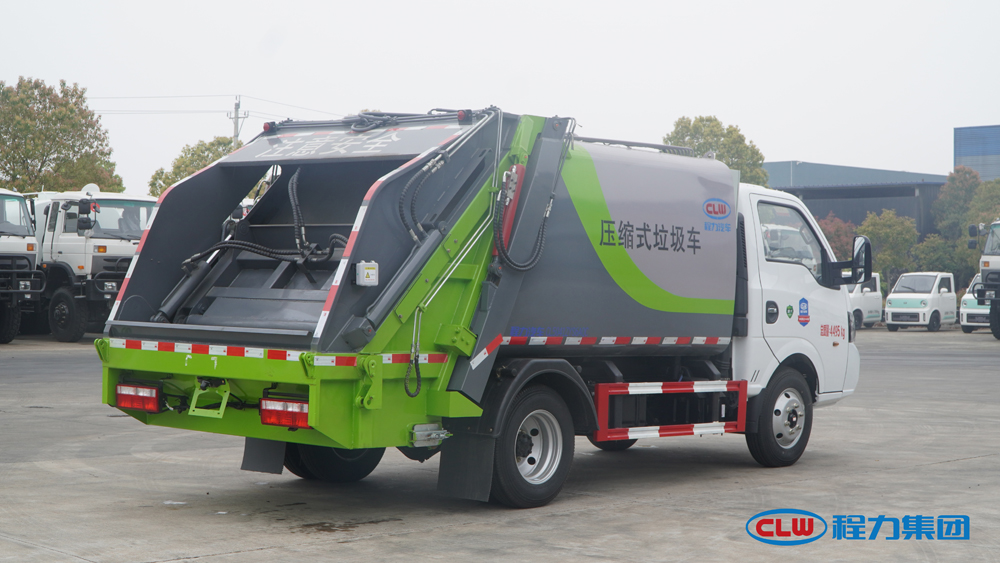

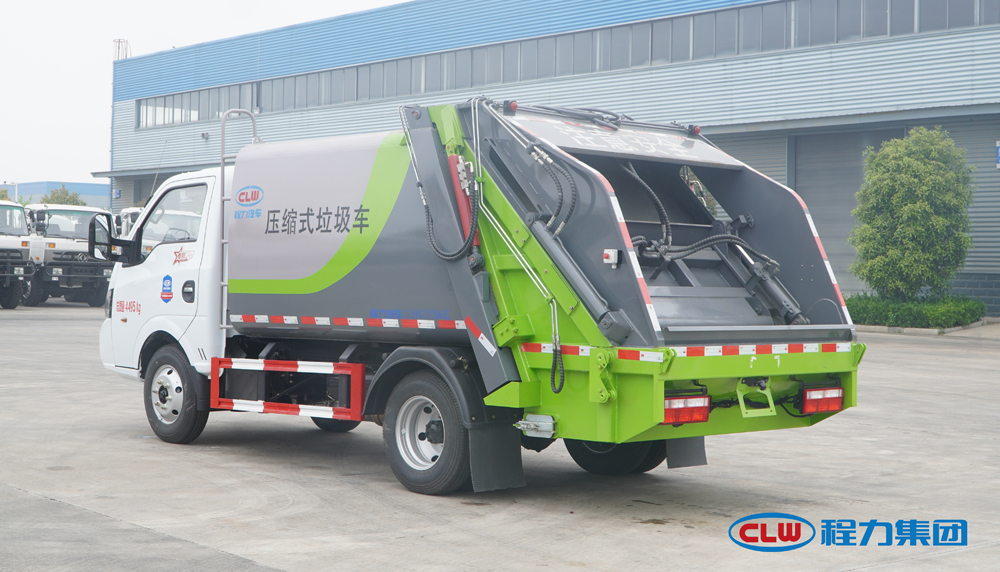

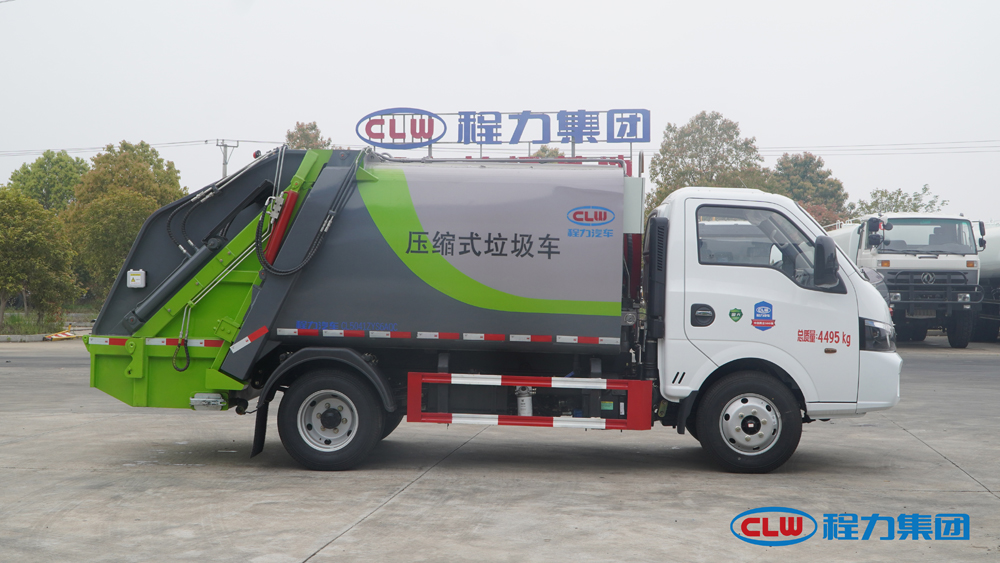

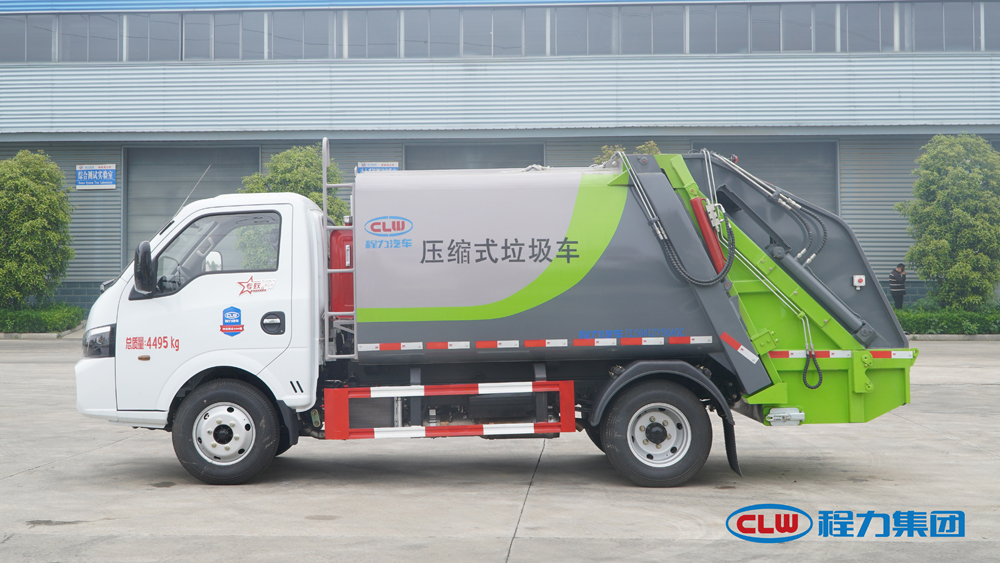

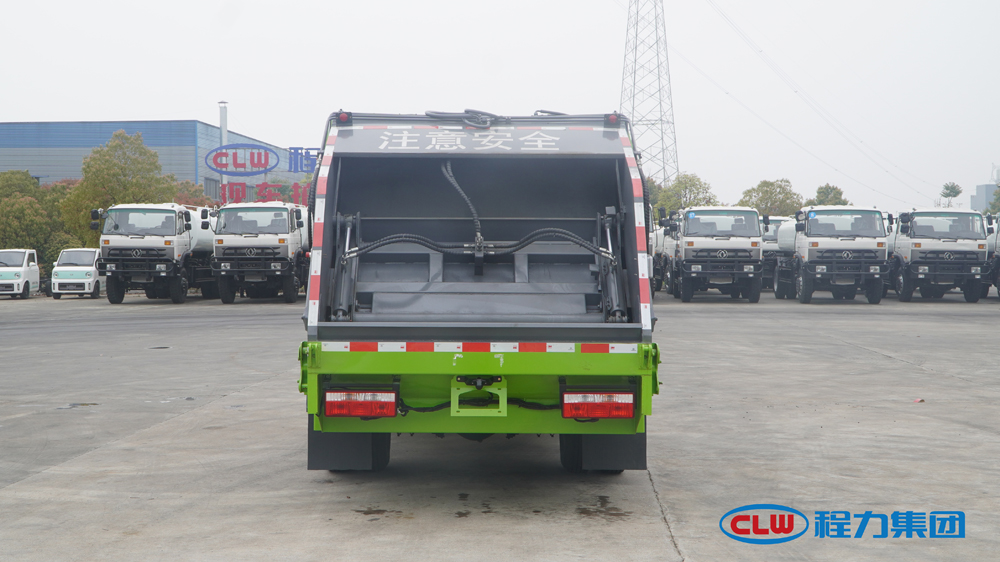

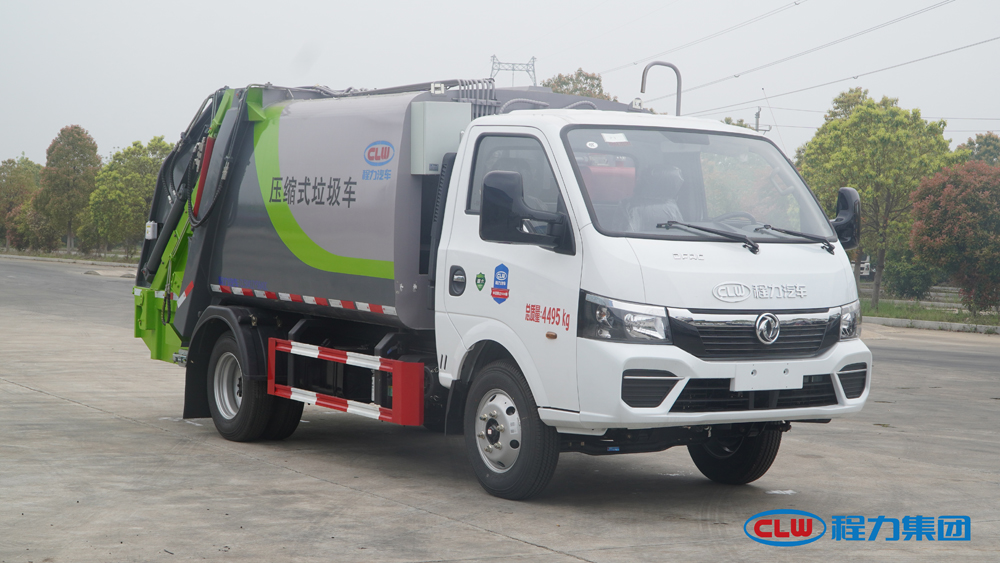

Suitable for collecting various types of household waste such as bagged, barreled, and bulk. The tail can be equipped with a hanging bucket flipping mechanism, compatible with 120L and 240L national standard plastic garbage cans. Through a hydraulic driven lifting flipping mechanism, the garbage can can can be quickly grasped, lifted, and dumped without excessive manual intervention, greatly reducing the labor intensity of sanitation personnel. The external dimensions of the vehicle are 5995 × 2090/2150 × 2450mm, with a wheelbase of 3000mm. It is compact in size and flexible in turning, making it easy to drive into areas that are difficult for large vehicles to reach, such as underground garages and narrow roads in residential areas. It is suitable for grassroots environmental sanitation work scenarios such as communities, small commercial areas, and streets, and efficiently completes daily garbage collection tasks. Equipped with a high-performance hydraulic system, the core specialized device consists of a box and a compression system. It adopts a compression method of scraper and skateboard coordinated action, with a compression ratio of not less than 2.5, which can effectively reduce the volume of garbage, maximize the use of box storage space, increase single transfer volume, reduce transportation frequency, and lower operating costs. The carriage is made of T700 high-strength steel plate with a thickness of 2.2mm. The structure is sturdy, corrosion-resistant, and can withstand long-term high-pressure compression operations without deformation. It is suitable for long-term high-frequency environmental sanitation operations at the base level. At the same time, the box body is fully welded to further improve the bearing stability. Adopting a fully sealed carriage design, the joint surface between the carriage and the filler is equipped with a tight sealing device, and the filler lifting is equipped with a hydraulic locking device, which can effectively prevent garbage throwing, odor diffusion, and leachate leakage, completely solving the problem of secondary pollution during garbage transportation. The vehicle is equipped with a dedicated sewage collection device, which can collect the leachate generated during the compression and dumping process of garbage, and discharge it synchronously during unloading to avoid sewage pollution of the road surface and surrounding environment. It meets the requirements of modern environmental protection operations and complies with relevant national environmental protection regulations.
