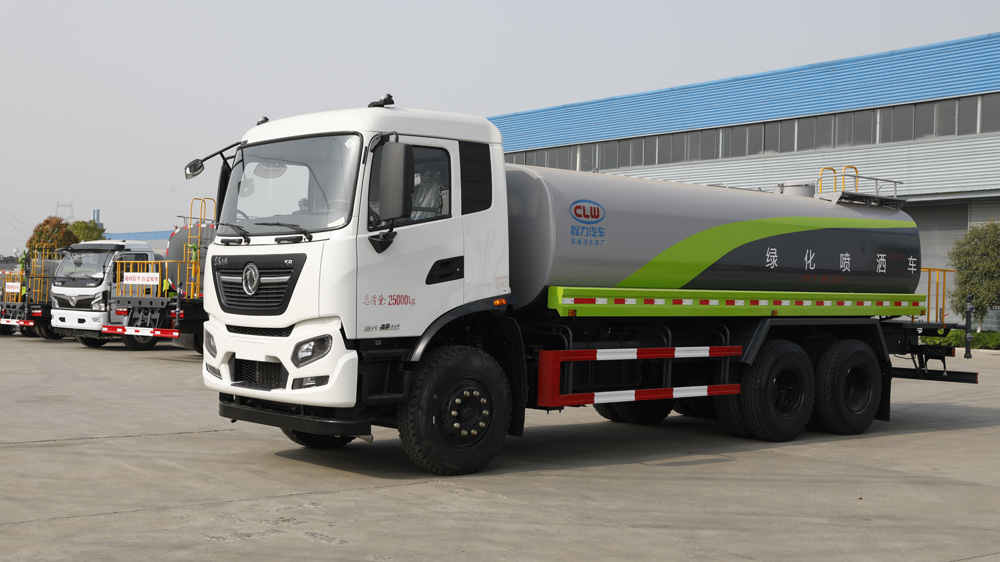

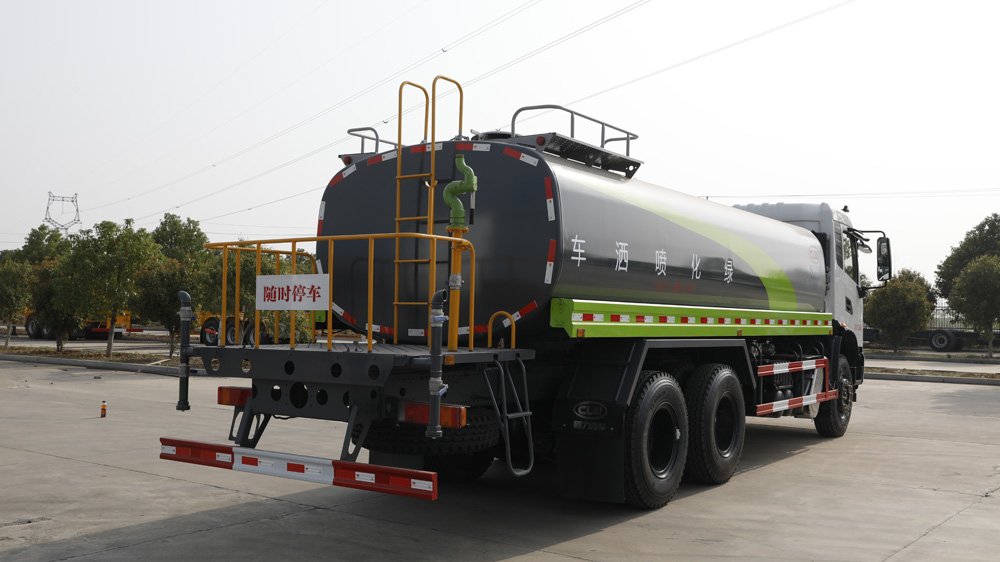

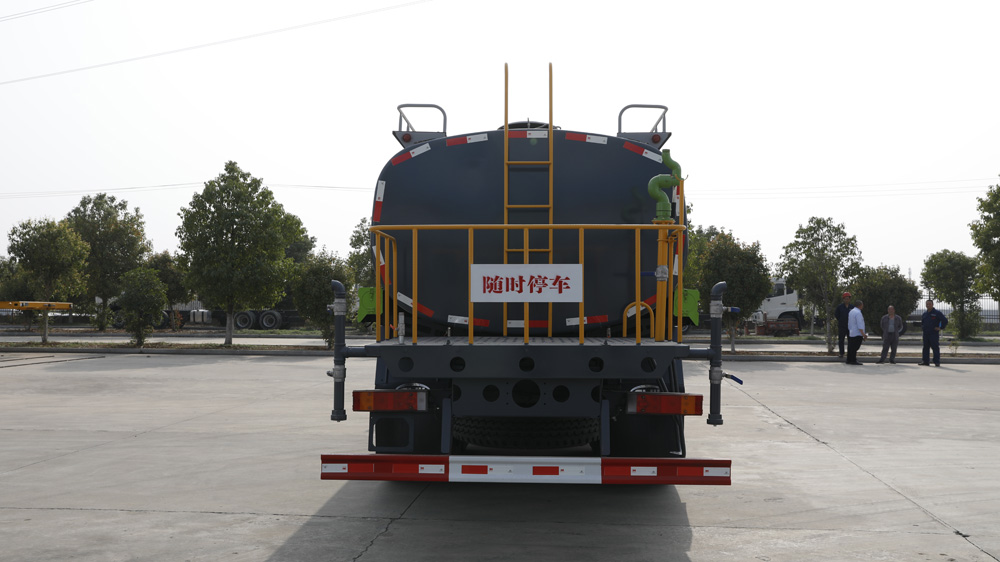

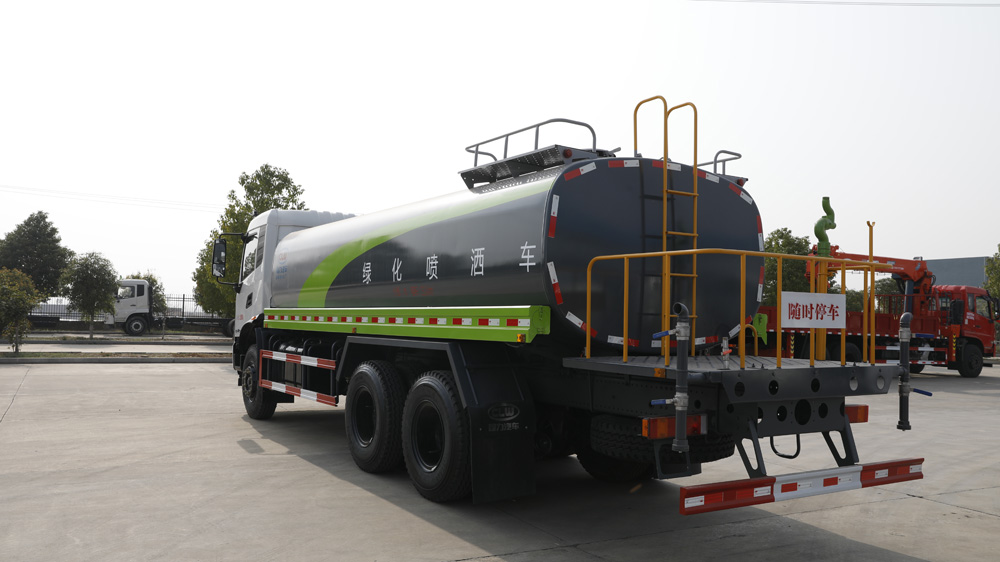

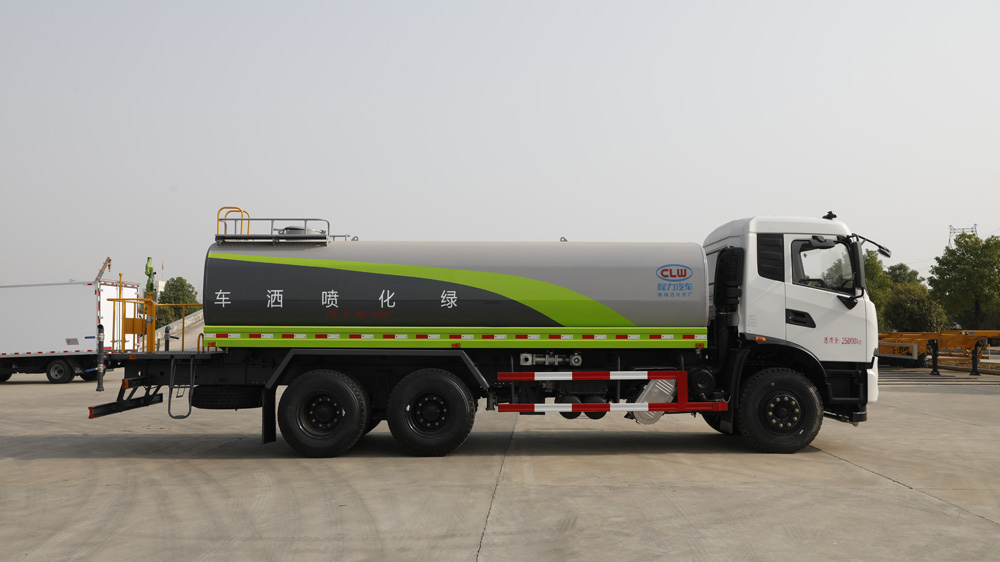

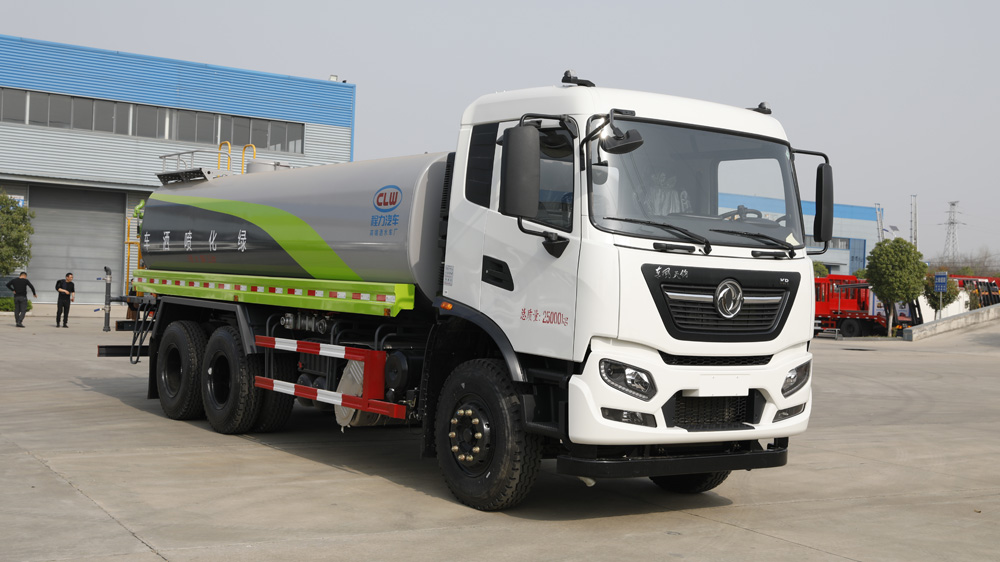

The vehicle is equipped with a dedicated Q235 carbon steel tank with a total capacity of 15.14 cubic meters and an effective volume of 14.42 cubic meters (some configurations have an effective volume of 13.9 cubic meters). The tank size is 6300 × 2300 × 1500mm (some configurations have an effective volume of 6700 × 2300 × 1370mm). The tank body is equipped with partitions to prevent waves and oscillations, reduce medium shaking during driving, and ensure operational stability. It can be loaded with acetone water solution, clean water, nutrient solution, pesticides and other media to meet the needs of large-scale greening spraying and farmland irrigation operations. It does not require frequent water replenishment and greatly improves operation efficiency. It is suitable for large-scale greening areas, farmland and other large-scale operation scenarios. Multi mode and multi form spraying: standard front flushing, rear spraying, side spraying devices and rear work platform. The platform is equipped with a high-pressure sprinkler gun for greening, which can rotate 360 ° and flexibly adjust various spraying forms such as direct flushing, heavy rain, moderate rain, drizzle, fog, etc. The sprinkler width is ≥ 14-16 meters, the maximum range can reach 30-35 meters, the vertical suction range is ≥ 6-7 meters, the water diversion time is
